Q09.1 - Compressors for 2 stage QUANTUMCOOLERS

Q09.1-J10-LV

Closed-cycle helium compressor

• Water-cooled helium compressor, 3 hp, 7/10 m3/hr, 50/60 Hz, 3-phase
• For cold head use: inlet 4-5 bar; outlet 19-20 bar
• For He recovery: inlet atmospheric; outlet 2-10 bar

Q09.1-J20-HV

Closed-cycle helium compressor

• Water-cooled helium compressor, 5 hp, 13/16 m3/hr, 50/60 Hz, 3-phase
• For cold head use: inlet 4-5 bar; outlet 19-20 bar
• For He recovery: inlet atmospheric; outlet 2-10 bar

Q09.1-RACK

Rack mounting system

• Rack mounting system for 4 compressors in a 2x2 arrangement
• With mounting of buffer tank under rack.
• Approx. dimensions: 0.9 m deep, 1.6 m wide, 2 m high (34"x64"x78")

Q09.1-XFMR

Transformer

• Custom transformer for QUANTUMCOOLER system
• To convert any 3-phase supply voltage to the voltage required by the QUANTUMCOOLER system: 440-480 V, 60 Hz or 380-415 V, 50 Hz

Q09.2 - Compressors for JT Loop QUANTUMCOOLERS

Q09.2-J40

Rotary Screw Compressor 40 kW

Q09.2-J100

Rotary Screw Compressor 100 hp

Q09.3 - Compressors for He-3 Applications

Inquire for details.

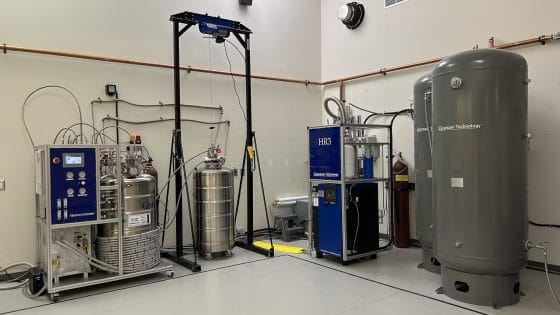

Q09.4 - Helium Gas Recovery Compressors and Components

Q09.4-HRP-100

Helium Recovery Compressor 200 bar

• Air-cooled, 3-stage, 1220 rpm, 6.5 m3/hr (3.8 cfm), to 200 bar (3000 psi)
• Electrical: 2.8 kW (5 hp), 3 phase, any voltage/Hz
• With auto drain and protection for overtemp, low oil, and contactor.

Q09.4-HRP-120

Helium Recovery Compressor 200 bar

• Air-cooled, 3-stage, 1220 rpm, 10.2 m3/hr (6 cfm), to 200 bar (3000 psi)
• Electrical: 4.4 kW (7.5 hp), 3 phase, any voltage/Hz
• With auto drain, helium filter, and protection for overtemp, low oil, and contactor.

Q09.4-HRP-15.1

Helium Recovery Compressor 200 bar

• Air-cooled, 4-stage, 1320 rpm, 22 m3/hr (13 cfm), to 200 bar (3000 psi)
• Electrical: 8.5 kW (15 hp), 3 phase, any voltage/Hz
• With auto drain, helium filter, and protection for overtemp, low oil, and contactor.

Q09.4-HRP-18.1

Helium Recovery Compressor 200 bar

• Air-cooled, 5-stage, 1320 rpm, 30.6 m3/hr (18 cfm), to 200 bar (3000 psi)
• Electrical: 11.5 kW (20 hp), 3 phase, any voltage/Hz
• With auto drain, helium filter, and protection for overtemp, low oil, and contactor.

Q09.4-HRP-22

Helium Recovery Compressor 200 bar

• Air-cooled, 5-stage, 1180 rpm, 44 m3/hr (26 cfm), to 200 bar (3000 psi)
• Electrical: 17 kW (25 hp), 3 phase, any voltage/Hz
• With auto drain, helium filter, and protection for overtemp, low oil, and contactor.

Q09.4-HRP-QUIET

Silent High Pressure Compressor Shroud

• Turbo-Cooled ultra-silent high pressure compressor shroud kit
• with sound insulating material installed.

Q09.4-BAG-5M

Helium Gas Recovery Bag, 5 cubic metres

• He gas bag, maximum volume 5.6 m3 (200 cu.ft)
• Including inlet shutoff valve and pressure relief valve

Q09.4-BAG-8M

Helium Gas Recovery Bag, 8 cubic metres

• He gas bag, maximum volume 8 m3
• Including inlet shutoff valve and pressure relief valve
• approx. dimensions (inflated): 2x4x2 m3

Q09.4-BAG-11M

Helium Gas Recovery Bag, 11 cubic metres

• He gas bag, maximum volume 11.3 m3 (400 cu.ft)
• Including inlet shutoff valve and pressure relief valve

Q09.4-CONTROL

Automatic optical control switch

• Pair of optical sensors which sense the degree of inflation of the helium gas bag.
• Used to automatically switch the compressor on when the bag is full and switch it off when the bag is empty.

Q09.4-HRP-HPMAN

High Pressure Outlet Manifold & Control Panel

• Set up to simultaneously charge several high pressure cylinders with manual valves on 1.5 m flexible high pressure fill lines
• each fitted with bleed valve and GCA 580 helium fittings for cylinders.
• price per output port

Q09.4-HRP-HPGAU

Pressure Gauges for high pressure recovery

• Optional pressure gauges on above manifold (Q09.4-HRP-HPMAN) - one per cylinder.

Q09.4-J5

Helium gas compressor, low pressure

• Air-cooled, hermetic compressor module.
• Inlet atmospheric, outlet 2 to 7 bar, 40 std L/min.
• Electrical: 208V, 6A, 1 phase, 50/60 Hz

Q09.4-REC-COMP-LP

Helium recovery compressor 10 bar

• Water-cooled, permanently lubricated helium compressor for continuous duty
• Inlet atmospheric, outlet 2 to 15 bar, 4 L/s (8 scfm) at 60 Hz, 3.5 L/s at 50 Hz
• Electrical: 4.5 kW, 3 phase, 380-415 V at 50 Hz, 440-480 V at 60Hz

Q09.4-TANK-He-100

Steel Pressure Tank, 100 L

• 100 L steel pressure tank, rated working pressure 240 psig (16 bar).
• Approx. dimensions: 16" (0.4 m) dia x 50" (1.3 m) high, 32 kg

Q09.4 TANK-He-454

Steel Pressure Tank, 454 L

• 454 L steel pressure tank, rated working pressure 240 psig (16 bar).
• Approx. dimensions: 0.78 m diameter x 1.5 m high
• Liquid helium equivalent: 4 L

Q09.4-COMP-REG

Recovery pressure regulator

• Precision recovery pressure regulator to maintain a constant (slight positive) helium gas pressure above the liquid.
• To be used with the recovery compressor.

Q09.4-REC-COMP-CheckV

Recovery pressure check valve
